Single Phase Trans Bases

Single Phase Transformer Bases

Bases for Single Phase Transformers

Name Description Length Width Height Opening Dimensions Tons Drawings Price

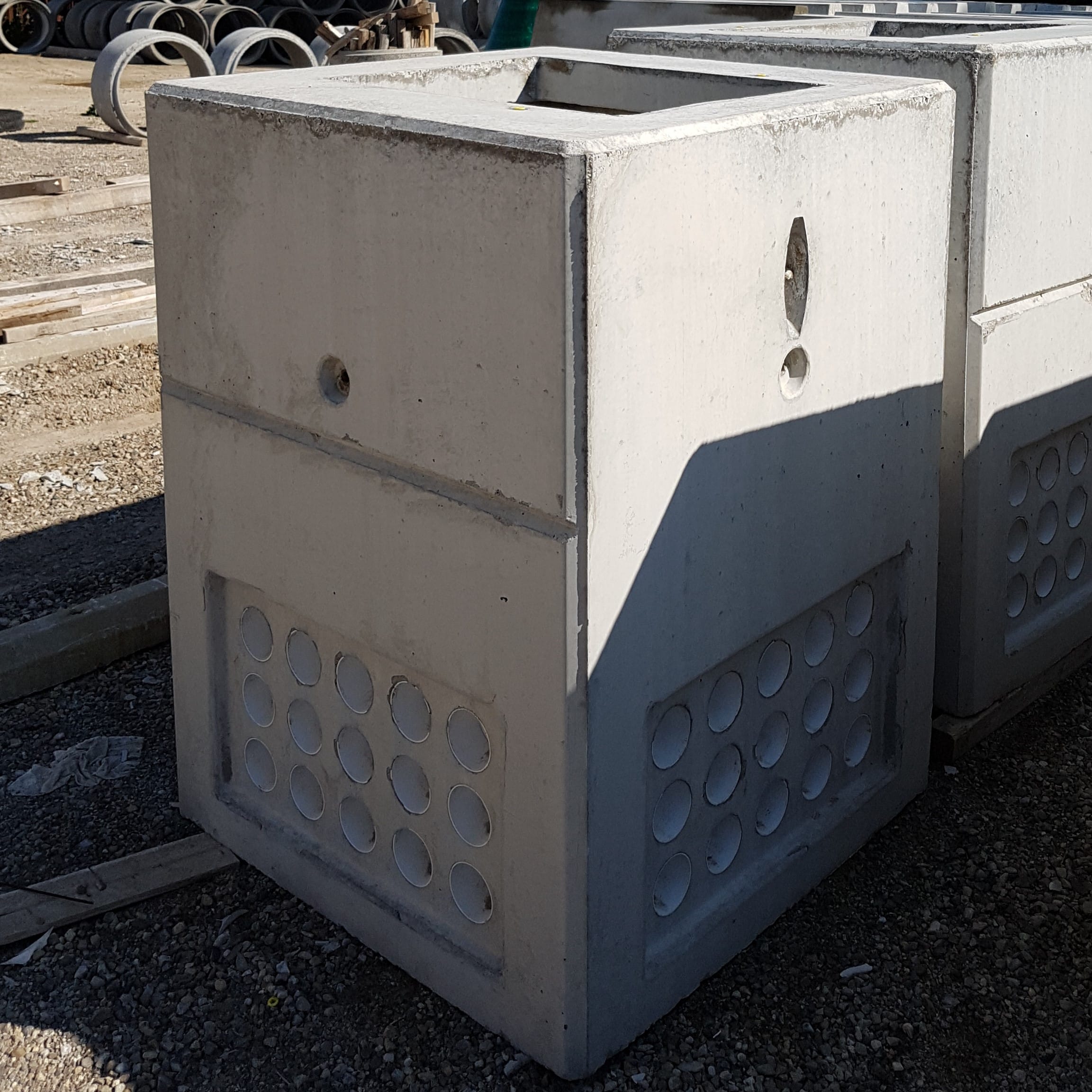

Image LPC48 For padmount transformers Guelph & Halton Hills Hydro 48" (1220mm) 48" (1220mm) 46" (1170mm) 33" x 26" (840mm x 660mm) 2 View  $600.00

Add To Quote

Image LPC48X For padmount transformers - Guelph Hydro spec - c/w bell ends cast in 48" (1220mm) 48" (1220mm) 64" (1625mm) 33" x 26" (840mm x 660mm) 2.5 View  $1125.00

Add To Quote

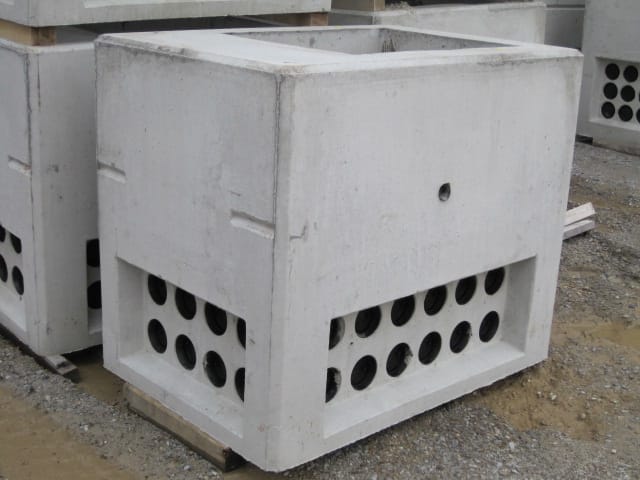

Image LP58P For padmount transformers - Hydro One spec. 58" (1470mm) 40" (1016mm) 42" (1066mm) 34" x 28" (860mm x 710mm) 1.75 View  $540.00

Add To Quote

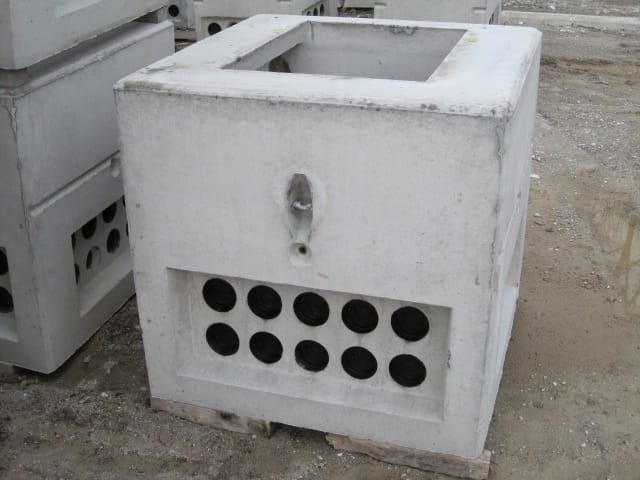

Image LP58X For padmount transformers - Cambridge Hydro spec. 58" (1470mm) 40" (1016mm) 48" (1200mm) 34" x 28" (860mm x 710mm) w/cutouts for cable lugs 2 View  $565.00

Add To Quote

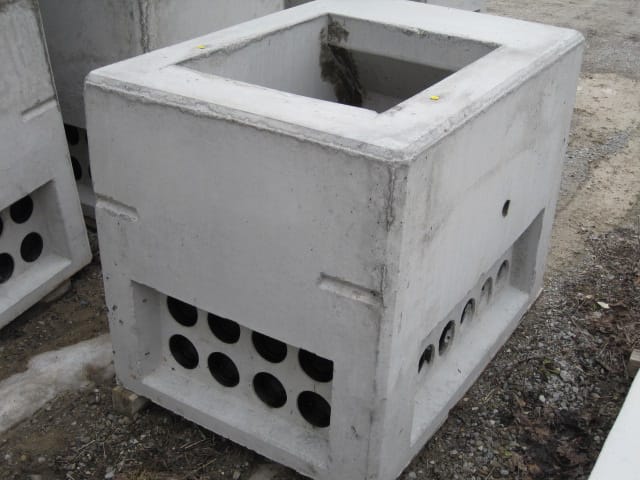

Image LP58XP For padmount transformers - Brampton, Miss.,et al 58"(1470mm) 40"(1016mm) 48"(1200mm) 34" x 28" (860mm x 710mm) 2 View  $565.00

Add To Quote

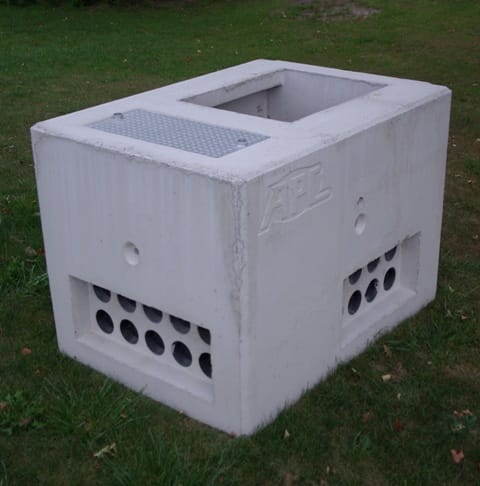

Image LPC66 2 openings w/ galv. cover - Milton Hydro spec. 66"(1675mm) 48"(1220mm) 46"(1170mm) 33" x 26" & 12” x 26” (825mm x 660 & 300mm x 660mm) 2.5 View  $750.00

Add To Quote
