3 Phase Trans Bases

Bases for 3 Phase Transformers

Bases for 3 Phase Transformers

Name Description Length Width Height Opening Dimensions Tons Drawings Price
Image LPC80 One piece transformer base - Guelph, Halton Hills, Milton, Brantford 80" (2030mm) 72" (1830mm) 48" (1066mm) 44" x 18" (1120mm x 460mm) 4 View  $1340.00

Add To Quote

Image LPC80G LPC80 w/bell ends cast in - Guelph Hydro spec 80" (2030mm) 72" (1830mm) 48" (1200mm) 44" x 18" (1120mm x 460mm) 4 View  $1540.00

Add To Quote

Image B7280 Base box for P7280 c/w duct seals 80"(2030mm) 72"(1830mm) 42"(1066mm) 70" x 62" x 42"h (1780mm x 1575mm x 1070mm) 2.5 View  $900.00

Add To Quote

Image P7280 Top slab for B7280 2 Pc. Trans. base 80"(2030mm) 72"(1830mm) 6"(150mm) 44" x 18" (1120mm x 460mm) 1.5 View  $575.00

Add To Quote

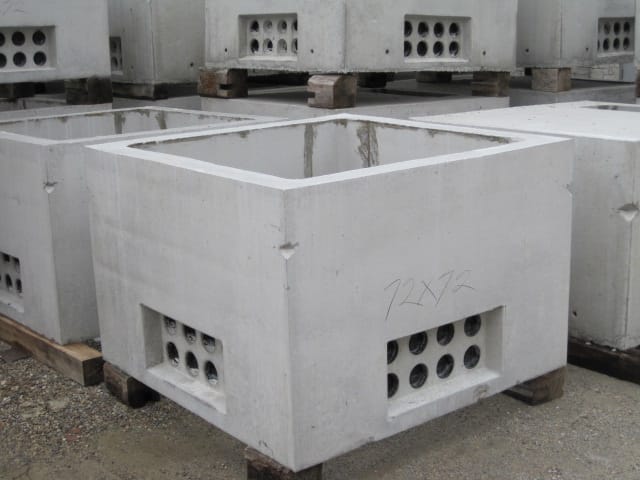

Image B7272 Base box for P7272 c/w duct seals 72"(1830mm) 72"(1830mm) 48"(1220mm) 60" x 60" x 48"h (1520mm x 1520mm x 1220mm) 3.25 View  $900.00

Add To Quote

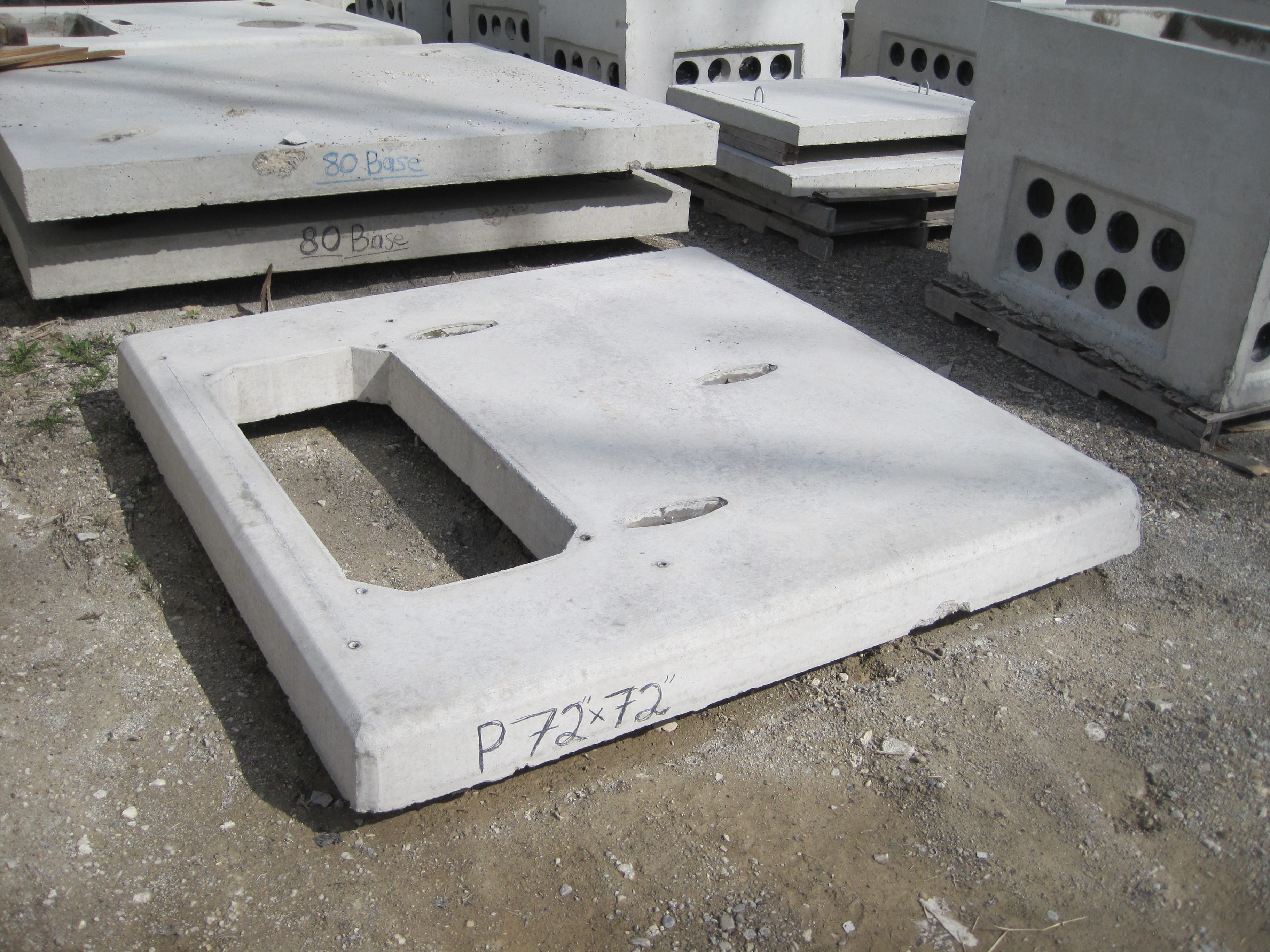

Image P7272 Top slab for B7272 -2 Pc. Transformer base 72"(1830mm) 72"(1830mm) 6"(150mm) 44" x 18" (1120mm x 460mm) 1.5 View  $487.50

Add To Quote

Image P8492 Footing slab for LPC80 92"(2335mm) 84"(2135mm) 6"(150mm) None 1.5 View  $600.00

Add To Quote

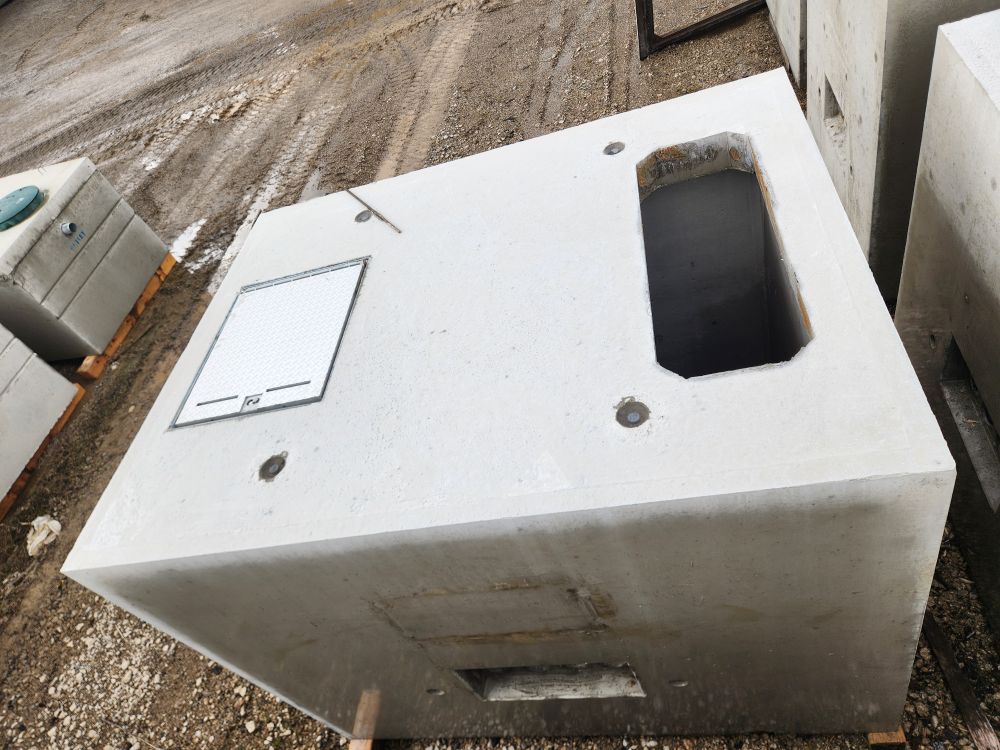

Image LPC108 3 Phase Padmount transformer base c/w base slab, aluminum hatch and bell ends cast in - Guelph Hydro Spec 108" (2700mm) 84" (2100mm) 87" (2175mm) 52" x 18" (1320mm x 450mm) 11 View  $6000.00

Add To Quote
