Concrete Catch Basins & Cast Iron Grates
Name | Description | Length | Width | Height | lbs. | Drawings | Price | |

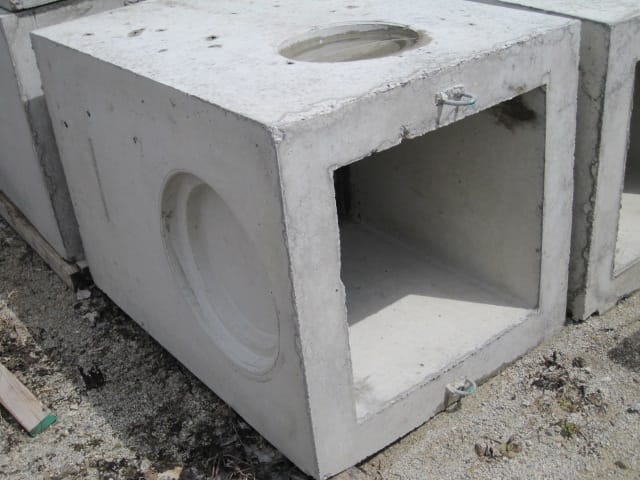

Standard Catch basin | 24" x 24" inside c/w 15"-18" dia. knockout on 2 opposing sides,10"-12" knockout on 3rd side. 12" from top to centre | 33 | 33 | 48 | 2500 | View |
$490.00
|
|

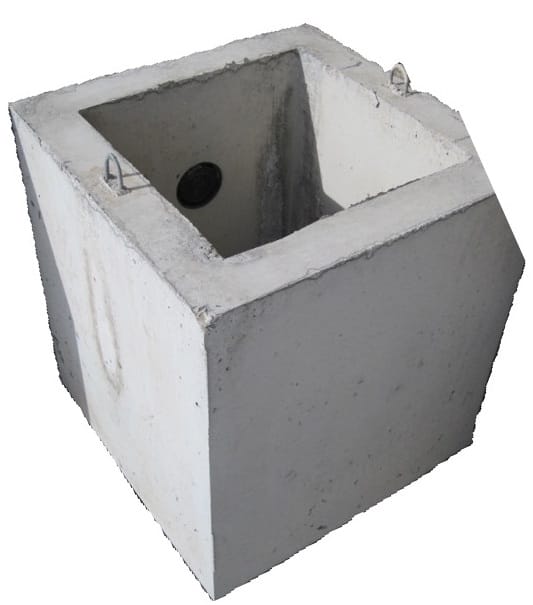

"Shorty" Catch Basin | "Shorty" catch basin - 24" x 24" inside 36" high w/flat bottom c/w 1 - 4" pipe seal, 12" from top to center | 33 | 33 | 36 | 1800 | View |
$370.00
|
|

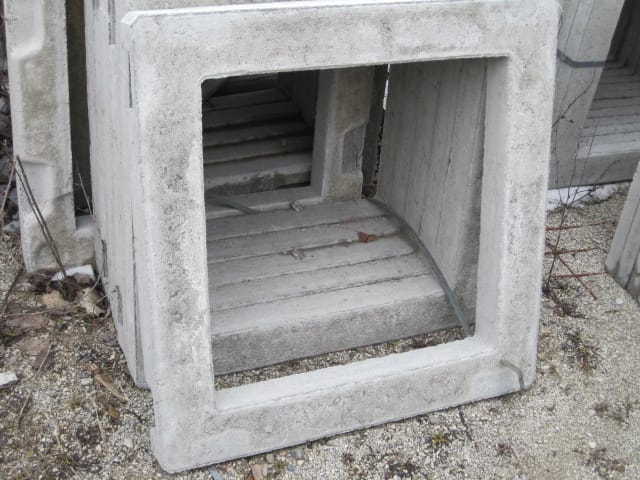

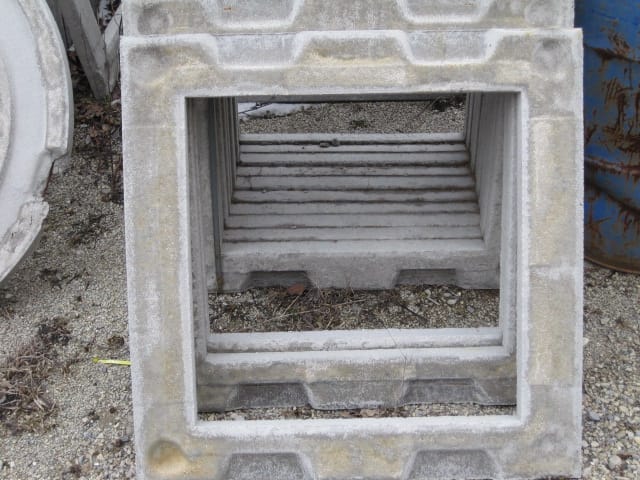

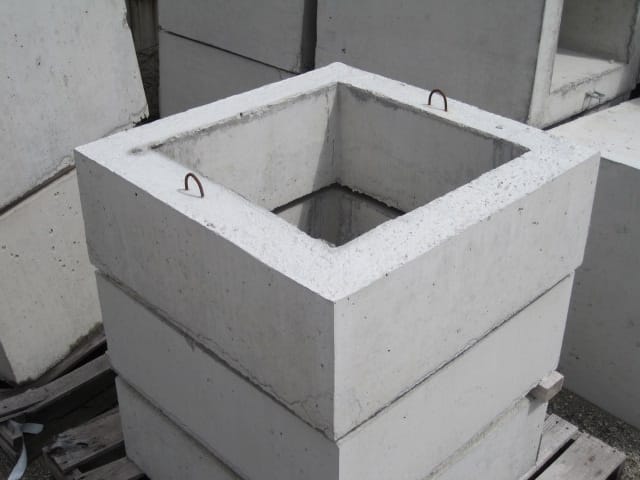

24" Catch Basin Riser | To increase depth of standard catch basin by 24" | 33 | 33 | 24 | 1050 |
$330.00
|
||
12" Catch Basin Riser | To increase depth of standard catch basin by 12" | 33 | 33 | 12 | 525 |
$175.00
|
||
6" Catch Basin Risers | to increase depth of standard catch basin by 6" | 33 | 33 | 6 | 260 |
$105.00
|
||
3" Catch Basin Risers | To increase the depth of a standard catch basin by 3" | 33 | 33 | 3 | 135 |
$60.00
|
||
2" Catch Basin Risers | To increase the depth of a standard catch basin by 2" | 33 | 33 | 2 | 90 |
$50.00
|
||

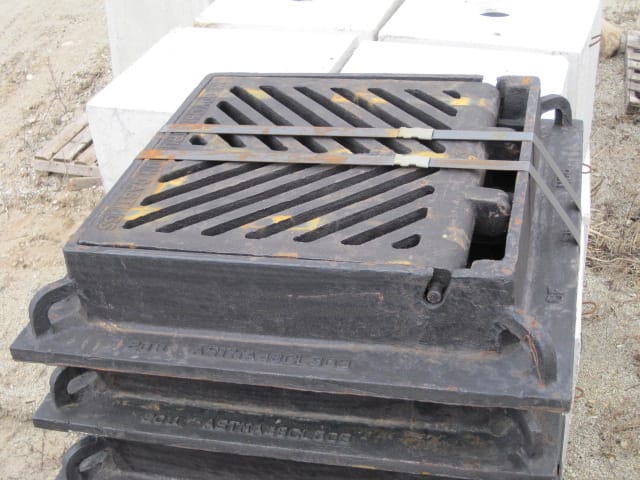

Catch Basin frame & grate | For standard or "shorty" catch basin - OPSD 400.02 | 33 | 33 | 6 | 270 |
$720.00
|
||
Garage catch basin | c/w cast iron grate - designed for light vehicular traffic | 24 | 24 | 24 | 400 | View |
$500.00
|
|

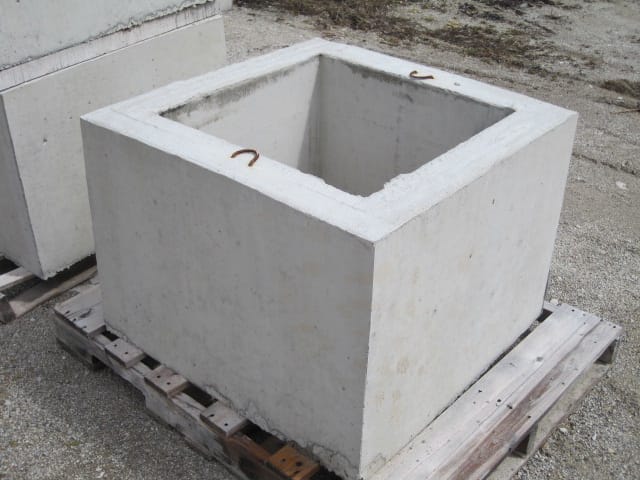

Tall Garage catch basin | c/w cast iron grate - designed for light vehicular traffic | 24 | 24 | 40 | 700 |
$780.00
|
||
Rain Drain | light duty catch basin, c/w plastic grate and 4 - 4" pipe seals | 15.5 | 11 | 10.5 | 50 | View |
$60.00
|
|
